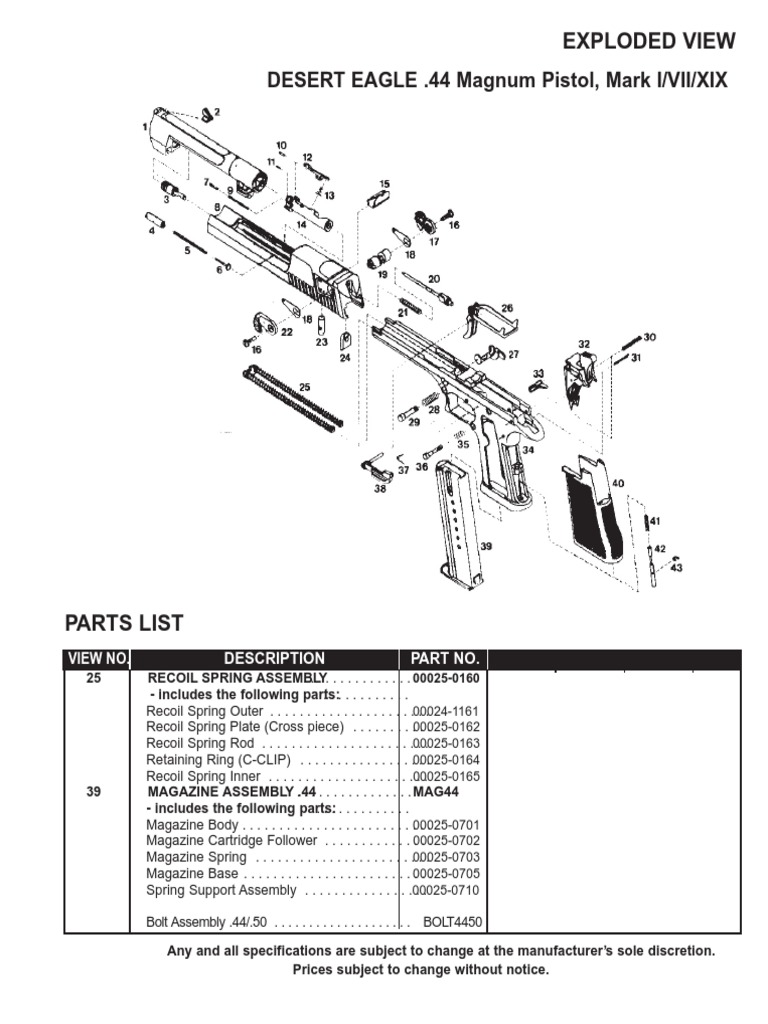

EXPLODED VIEW

DESERT EAGLE .44 Magnum Pistol, Mark I/VII/XIX

PARTS LIST
VIEW NO. DESCRIPTION PART NO.
25 RECOIL SPRING ASSEMBLY . . . . . . . . . . . . . . . 00025-0160
- includes the following parts: ............
Recoil Spring Outer . . . . . . . . . . . . . . . . . . . .0.0.024-1161 5.00 7.00
Recoil Spring Plate (Cross piece) . . . . . . . . .00025-0162 .. 12.00 15.00
Recoil Spring Rod . . . . . . . . . . . . . . . . . . . . .0.0.025-0163 10.00 12.00
Retaining Ring (C-CLIP) . . . . . . . . . . . . . . . .0.0.025-0164 1.00 2.00
Recoil Spring Inner . . . . . . . . . . . . . . . . . . . .0.0.025-0165 1.00 2.00
39 MAGAZINE ASSEMBLY ..44 . . . . . . . . . . . . . . . MAG44
- includes the following parts: .............
Magazine Body . . . . . . . . . . . . . . . . . . . . . . . .00. 0. 25-0701 25.00 30.00
Magazine Cartridge Follower . . . . . . . . . . . . 0. 0. 0. 25-0702 10.00 12.00
Magazine Spring . . . . . . . . . . . . . . . . . . . . . .0.0.025-0703 3.00 4.00
Magazine Base . . . . . . . . . . . . . . . . . . . . . . . 0. 0. 0. 25-0705 5.00 7.00
Spring Support Assembly . . . . . . . . . . . . . . .0.0.025-0710 5.00 7.00

Bolt Assembly .44/.50 . . . . . . . . . . . . . . . . . . . . BOLT4450 149.00 169.00

Any and all specifications are subject to change at the manufacturer’s sole discretion.
Prices subject to change without notice.
PARTS LIST DESERT EAGLE .44 Magnum Pistol, Mark I/VII/XIX
VIEW NO. DESCRIPTION PART NO.
1 Barrel 6" .44 - MK I/VII . . . . . . . . . . . . . . . . . . . DEP506 N/A N/A
1-A Barrel 6" .44 - MK XIX . . . . . . . . . . . . . . . . . . . . BAR446 269.00 299.00
2 Front Sight . . . . . . . . . . . . . . . . . . . . . . . . . . .0.00. 24-1101-5 12.00 15.00
3 Gas Piston . . . . . . . . . . . . . . . . . . . . . . . . . .0.0.025-0214 25.00 30.00
4 Bolt Stabilizer Pin . . . . . . . . . . . . . . . . . . . . . .0.0.024-1211 12.00 15.00
5 Bolt Stabilizer Spring . . . . . . . . . . . . . . . . . . .0.0.024-1213 5.00 7.00
6 Bolt Stabilizer Guide Pin . . . . . . . . . . . . . . . .00 . 0. 24-1212 15.00 18.00
7 Ejector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.0.025-0253 12.00 15.00
8 Slide - MK I/VII . . . . . . . . . . . . . . . . . . . . . . .0.0.025-0201 209.00 229.00
8-A Slide - MK XIX . . . . . . . . . . . . . . . . . . . . . . . .04 . 0. 07-0201 215.00 249.00
9 Ejector Spring . . . . . . . . . . . . . . . . . . . . . . . .0.0.025-0252 1.00 2.00
10 Extractor Pin . . . . . . . . . . . . . . . . . . . . . . . . .0.0.025-0255 3.00 4.00
11 Ejector Pin . . . . . . . . . . . . . . . . . . . . . . . . . . .0.0.025-0254 1.00 2.00
12 Extractor . . . . . . . . . . . . . . . . . . . . . . . . . . .0.0.025-0261 32.00 39.00
13 Extractor Spring, Polymer . . . . . . . . . . . . . . .0.4.024-1262 7.00 9.00
14 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.0.025-0251 68.00 80.00
15 Rear Sight . . . . . . . . . . . . . . . . . . . . . . . . . . .0.00 . 24-1241 15.00 18.00
16 Safety Screw - MK I/VII . . . . . . . . . . . . . . . . .0.0.024-1209 10.00 12.00
16-A Safety Screw - MK XIX . . . . . . . . . . . . . . . . 04007-0209 ... 5.00 7.00
17 Right Safety Lever . . . . . . . . . . . . . . . . . . . . 0 . 4. 0. 24-1207 12.00 15.00
18 Safety Spring . . . . . . . . . . . . . . . . . . . . . . . . .0.0.024-1208 5.00 7.00
19 Safety - MK I/VII . . . . . . . . . . . . . . . . . . . . . .0.0.025-0206 25.00 30.00
19-A Left Safety - MK XIX (Not Pictured) . . . . . . . 04007-0206 ... 25.00 30.00
19-B Right Safety - MK XIX (Not Pictured) . . . . . 04007-0216 ... 12.00 15.00
20 Firing Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.0.024-1202 25.00 30.00
21 Firing Pin Spring . . . . . . . . . . . . . . . . . . . . . .0.0.024-1203 1.00 2.00
22 Left Safety Lever . . . . . . . . . . . . . . . . . . . . . 0 . 4. 0. 24-1217 12.00 15.00
23 Bolt Guide Pin . . . . . . . . . . . . . . . . . . . . . . . .0.00 . 25-0205 7.00 9.00
24 Firing Pin Stop . . . . . . . . . . . . . . . . . . . . . . . .0.0.025-0204 12.00 15.00
25 Recoil Spring Assembly . . . . . . . . . . . . . . . . .0.00 . 25-0160 32.00 39.00
26* Trigger Assembly . . . . . . . . . . . . . . . . . . . . . .0.0.024-1340 55.00 65.00
27 Barrel Lock . . . . . . . . . . . . . . . . . . . . . . . . . . .0.0.024-1302 25.00 30.00
28 Barrel Lock Spring . . . . . . . . . . . . . . . . . . . . .0.0.024-1304 1.00 2.00
29 Barrel Lock Pin . . . . . . . . . . . . . . . . . . . . . . .0.0.024-1303 7.00 9.00
30 Hammer Pin . . . . . . . . . . . . . . . . . . . . . . . . . .0.0.024-1312 3.00 4.00
31 Sear Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . .00 . 0. 24-1311 3.00 4.00
32* Adjustable Trigger Assembly - MK VI/XIX . . . . . DEP200 89.00 105.00
33 Magazine Catch . . . . . . . . . . . . . . . . . . . . . . 0. 0. 0. 24-1307 15.00 18.00
34 Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N/A - -
35 Magazine Catch Spring . . . . . . . . . . . . . . . . 0. 0. 0. 24-1309 1.00 2.00
36 Magazine Catch Pin . . . . . . . . . . . . . . . . . . . 0. 0. 0.24-1308 10.00 12.00
37 Slide Catch Spring . . . . . . . . . . . . . . . . . . . . 0 . 0. 0. 24-1313 1.00 2.00
38 Slide Catch . . . . . . . . . . . . . . . . . . . . . . . . . 0 . 4. 0. 24-1330 20.00 25.00
39 Magazine Assembly . . . . . . . . . . . . . . . . . . . . . . MAG44 27.00 35.00
40 IMI Grip Assembly . . . . . . . . . . . . . . . . . . . . .0.0.024-1305 15.00 18.00
