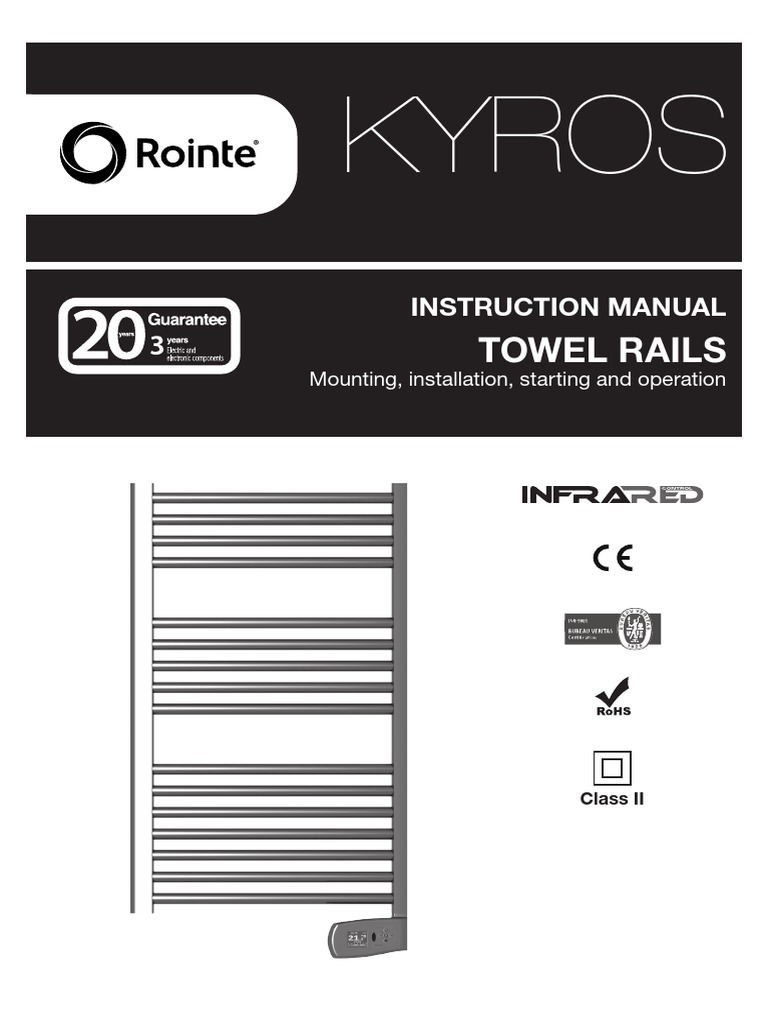

INSTRUCTION MANUAL
TOWEL RAILS
Mounting, installation, starting and operation
Class II
KYROS
Thank you.
Many thanks for your confidence in our Rointe products. Before you
start to use the low-consumption Kyros towel rails we recommend
that you read this manual carefully in order to use the product
correctly with the maximum guaranteed results.
2
INDEX OF CONTENTS
5. Guarantee�������������������������������������������������������������������������������30
3
KYROS
1. DESCRIPTION OF THE D SERIES TOWEL RAILS
4
1.1. Description of the front panel
ICON INDICATION
On / Off - Accept
Decrease temperature - Move left
Increase temperature - Move right
Access/Back to menu - Move up
Manual / Automatic - Move down
10 9
8
4
7
3
2 6
1 5
5
KYROS
NUM. INDICATION
3 Time
4 Selected temperature
ICON DESCRIPTION
6
Towel Rail Heating element on
Comfort Mode activated
Eco mode activated
Anti-frost mode activated
Automatic mode activated
Manual mode activated
Pilot Wire Control mode activated
Not available in UK. Only upon demand
7
KYROS
1.2. Switch On and Off (Stand-by)
8
1.3. Temperature selection
9
KYROS
If we lock the product via the application or
remote control then the remote locked icon will
appear on the screen . When you press any
button on the towel rail control panel, the image
on the right will appear on the screen. If the
product is locked in this way, you can only
unlock the towel rail via the Air Control remote.
10
By pressing the button, the hours, minutes
and days will flash depending on the number of
times the button is pressed (1 for hours, 2 for
minutes and 3 for the day of the week).
We can change any of these by pressing the
or buttons. To confirm, press the button.
11
KYROS
1.6.1. Configuration sub-menu
12
• Language
You can select the language you wish using this LANGUAGE
function. Select the language you wish by pressing ENGLISH
FRANÇAIS
the and buttons. Press the button to ESPAÑOL
confirm the language highlighted. PORTUGUÊS
Effective
Open window Two-hour
power Information
function Boost mode
function
13
KYROS
• Open Window Function
14
Once the towel rail is set on this mode, and until
the period of time haves finished or the key is
pressed again, the display will show this image.
15
KYROS
1.6.3. Balance Sub-menu
/
Manual / Pilot Wire Mode
Start
Automatic User Function (Only upon
Programming demande)
Function
16
Manual Mode
This mode allows you to change between comfort, eco and
anti-frost modes changing the temperature as described in
section 1.3.
Automatic Mode
This mode activates the programming which has been set
in the towel rail.
Pilot Wire Mode
Not available in UK. Only upon demand
This mode allows you to control the towel rail via a central
control.
17
KYROS
• Manual/Automatic Function
• Start Programming
18
With keys and is exchanged between
presets and programming custom home. With
confirmed with key and screen appears with
all 4 presets.
3 Select DAYS
19
KYROS
4 Asign mode to each HOUR
To access the hourly programming of the chosen
days press until you pass day number 7.
12h
You can move back and forward between the
hours by using the and buttons. The
hours are shown as 0h, 1h, 2h…
Once the hours of the selected days have been programmed, press
or wait 30 seconds without touching any button.
You can program day by day or you can program several days at
the same time.
• User Function
20
USER Function
This allows the user to establish a limited working temperature
range (maximum and minimum temperature).
By way of a 4 digit code you can access a menu where
you can activate or deactivate this function, change the
password and fix a maximum and minimum temperature
range for the product
When the product is working with this function one of the
following symbols will appear on the main screen
depending on whether it is in Automatic mode, Manual mode
or Pilot Wire mode.
INSERT PIN
21
KYROS
When the PIN number has been entered correctly
the main screen of the basic configuration will
appear.
• Activate function
22
• Change the PIN code
NEW PIN
• Maximum temperature
23
KYROS
• Minimum temperature
WARNING!
24
1.7. Open Window Function
This function is activated when the towel rail sensor detects a drop
of 4ºC in the set temperature within a period of half an hour.
You can switch the towel rail on again by pushing the button
and it will work without the “Open Window” function.
25
KYROS
4. Insert the rawl plugs in the holes made.
5. Screw the plastic fastener to the wall with the 5.5 x 50 mm screw.
6. Screw the two brackets for supporting the heated towel rail and
the plastic fastener to the horizontal tube of the heated towel rail
like in Figure 1 with the 8 x 26 mm screw.
7. Insert what you have assembled in Section 6 into the plastic piece
and fix well with the 5 x 12 mm screw.
8. Place the cover on the piece supporting the heated towel rail.
5
1
2 9
3
7 8
6
1 10 x 40 mm Rawl Plug
2 Bracket
3 5.5 x 50 mm screw
4 5 x 12 mm screw
5 Bracket insert
6 Bracket head
7 8 x 26 mm screw
8 Cap
9 Towel Rail
26
3. Connecting Instructions
Connection to the mains must be made observing the voltage stated
on the product technical data label.
This appliance is designed to be permanently installed connected
to fixed facilities. The heated towel rail power supply circuit must
have an all-pole circuit breaker switch with a separation of at least
3 mm between the contacts.
The appliance must be installed, if possible, away from any source
of draughts (windows, doors) or any other thing which may affect its
functioning. In this way, the temperature will not be affected. Place
any object which might prevent the air flow (furniture, armchairs)
50 cm away from the front of the appliance.
The heater must never be installed immediately below a power point.
The lower part of the control panel must be placed at least 15 cm
from the floor.
For any appliance, if the power cable is damaged, it must be replaced
by a specific cable. The replacement of the cable must be done
by the maker, its after-sales service or qualified personnel. The
technical specifications of your appliance appear on the technical
data label.
OK
27
KYROS
IMPORTANT
• This device must never be installed with its control panel at the
top.
• This device must not be installed horizontally.
• During installation, use wedges so that the control panel will not
be in contact with the floor.
H1
H2
H1
H2
V2
H1
V1
H2
V4
V1
V2
V4
V1
V2
V4
V1
V2
V4
V3
V3
V3
V3
28
REFERENCE H1 H2 V1 V2 V3
KTI030*** 500 mm 300 mm 800 mm 640 mm 49 mm
KTI050*** 500 mm 300 mm 1,200 mm 1,040 mm 49 mm
KTI075*** 500 mm 300 mm 1,600 mm 1,360 mm 128 mm
KTI100*** 500 mm 300 mm 1,800 mm 1,360 mm 325 mm
CODE MODEL POWER VOLTAGE HEIGHT WIDTH DEPTH INST. DEPTH WEIGHT
KTI030SEB2 T.WHITE 030 300 W 230V~ 800 mm 500 mm 50 mm 100 mm 11 kg
KTI050SEB2 T.WHITE 050 500 W 230V~ 1,200 mm 500 mm 50 mm 100 mm 15 kg
KTI075SEB2 T.WHITE 075 750 W 230V~ 1,600 mm 500 mm 50 mm 100 mm 22 kg
KTI100SEB2 T.WHITE 100 1,000 W 230V~ 1,800 mm 500 mm 50 mm 100 mm 28 kg
CODE MODEL POWER VOLTAGE HEIGHT WIDTH DEPTH INST. DEPTH WEIGHT
KTI030SEM2 T.METALLIC 030 300 W 230V~ 800 mm 500 mm 50 mm 100 mm 11 kg
KTI050SEM2 T.METALLIC 050 500 W 230V~ 1,200 mm 500 mm 50 mm 100 mm 15 kg
KTI075SEM2 T.METALLIC 075 750 W 230V~ 1,600 mm 500 mm 50 mm 100 mm 22 kg
KTI100SEM2 T.METALLIC 100 1,000 W 230V~ 1,800 mm 500 mm 50 mm 100 mm 28 kg
CODE MODEL POWER VOLTAGE HEIGHT WIDTH DEPTH INST. DEPTH WEIGHT
KTI030SEC2 T.CHROME 030 300 W 230V~ 800 mm 500 mm 50 mm 100 mm 11 kg
KTI050SEC2 T.CHROME 050 300 W 230V~ 1,200 mm 500 mm 50 mm 100 mm 15 kg
KTI075SEC2 T.CHROME 075 500 W 230V~ 1,600 mm 500 mm 50 mm 100 mm 22 kg
KTI100SEC2 T.CHROME 100 750 W 230V~ 1,800 mm 500 mm 50 mm 100 mm 28 kg
30
5.3. If during the guarantee period the heated towel rail
fails to work properly, due to defects in design, materials or
workmanship, ROINTE shall repair or replace the towel rail,
whichever it considers to be more advisable, in the terms and
conditions stated below:
5.3.1. The guarantee shall only be covered if the original
Certificate of Guarantee issued to the buyer by the dealer or
installer is presented, and when the guarantee states the towel
rail serial number and model (on the technical data label) and
its date of purchase. ROINTE reserves the right to refuse the
guarantee service when this information has been removed or
changed following the original purchase of the product.
Only the original receipt or invoice shall be accepted as proof
of purchase when presented to the dealer or installer that sold
the product.
5.3.2. The guarantee shall only be applicable to cases regard-
ing defects in materials, design and workmanship, and shall
never cover any damages due to the following:
5.3.2.1. Incorrect use of the product for other than normal
purposes or failure to observe the instructions given by ROINTE
regarding the use and maintenance of the heated towel rail, as
well as the installation or use of the product in a way that fails
to comply with the applicable technical safety standards.
5.3.2.2. Repairs made by unauthorized repair shops or the
opening of the heated towel rail by unauthorized persons.
5.3.2.3. Unforeseen circumstances beyond the control of
ROINTE, such as lightning, fire, floods, public disorder, etc.
5.3.2.4. The repairs or replacements covered in this guarantee
31
KYROS
do not permit any extension or new beginning of the guarantee
period.
The repairs or replacements covered in this guarantee shall
be made with functionally equivalent reconditioned units. The
faulty parts or pieces removed shall become the property of
ROINTE.
5.3.2.5. This guarantee does not affect the buyer’s statutory
rights under the current national laws, or the buyer’s rights
against those of the dealer or installer arising from the contract
of sale.
5.3.2.6. In the event of there being no national legislation
applicable, this guarantee shall be the buyer’s sole protection.
ROINTE, its offices, dealers and installers shall not be held liable
for any type of damages, whether fortuitous or accidental, arising
from the failure to observe any of the regulations related with
this product.
32
Cut along the dotted line
CERTIFICATE OF GUARANTEE
In the event of detecting any defect in the product within the period of guarantee, you must fill in the
following Guarantee Certificate and send it to us stamped together with a copy of the sales invoice via
email support@rointe.co.uk or to the following postal address: INDUSTRIAS ROYAL TERMIC, S.L., C/E,
Parcela 43, 30140 Santomera (Murcia, Spain).
CERTIFICATE OF GUARANTEE
REFERENCE: Nº SERIES:
USER:
HOME ADDRESS:
TOWN: POSTCODE:
PROVINCE: COUNTRY:
TELEPHONE: SELLER’S STAMP:
EMAIL:
PURCHASE DATE:
NB: This certificate of Guarantee must be filled in fully in order to obtain guarantee rights. The date of
purchase and seller’s stamp are compulsory. Please, attach a copy of your sales invoices. In addition, for
new constructions include the Certificate of First Occupation.
ROINTE UK
Catalyst House
720 Centennial Court, Centennial Park
Elstree, Herts, WD6 3SY
Technical Support
T. 01432 598 024
support@rointe.co.uk
www.rointe.co.uk
MKSUK16V1
