Mechanical Bridge Plug: Technical Documentation

FORM: TECH.
402-02
VERSION: 2010
TOTAL PAGES: 23

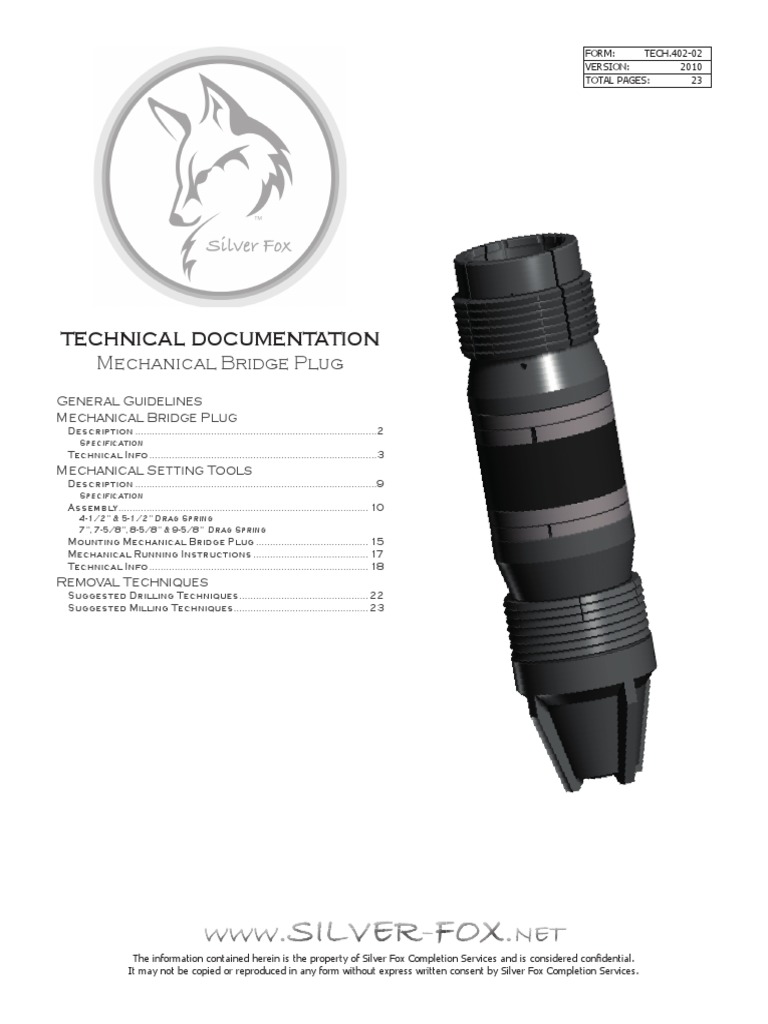

TECHNICAL DOCUMENTATION
Mechanical Bridge Plug
General Guidelines
Description��2
Specification
Technical Info��3
Mechanical Setting Tools
Description��9
Specification
Assembly�� 10
4-1/2” & 5-1/2” Drag Spring
7”, 7-5/8”, 8-5/8” & 9-5/8” Drag Spring
Mounting Mechanical Bridge Plug�� 15
Mechanical Running Instructions�� 17
Technical Info�� 18
Removal Techniques
Suggested Drilling Techniques�� 22
Suggested Milling Techniques�� 23
The information contained herein is the property of Silver Fox Completion Services and is considered confidential.
It may not be copied or reproduced in any form without express written consent by Silver Fox Completion Services.
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
TECHNICAL DOCUMENTATION AUTHOR: Kelly Kykkanen

Mechanical Bridge Plug APPROVAL: Anthony Honke
DATE: Oct 15th, 2020
General Guidelines
Receipt of Goods
Upon receipt of goods, Silver Fox recommends disassembly and inspection of the tool unless stated otherwise. Ensure parts have
not been damaged during shipping. If any parts are damaged, contact your local Silver Fox representative for replacement parts.
Pre-Run Inspection
CAUTION: Silver Fox does not tighten tools to be field ready, all tool connections made-up HAND TIGHT—labeled with tape or band
attached to the tool. Customer is required to tighten/torque all connections properly before operating tool.
Before and after each usage of the tool, Silver Fox recommends disassembly and thorough inspection of the tool. Clean parts and
ensure parts are in good working condition. Replace worn or damaged parts with Silver Fox replacement parts. Re-assemble the tool,
and take care in proper installation of all parts in the correct sequence and orientation. If tool is being set up for use, then Properly
tighten all connections to proper specifications.
GENERAL THREAD CONNECTION TORQUE RECOMMENDATIONS
STUB ACME/ ACME INTERNAL TAPERED TUBING THREADS PREMIUM THREADS

THREADS
UP TO 2-3/8” GREATER THAN 2-3/8”
Consult thread manufacturers
600 - 800 FT-LBS 600 - 800 FT-LBS 800 - 1,200 FT-LBS
recommendations
GENERAL SCREW TORQUE RECOMMENDATIONS

(GENERAL SCREW TORQUE RECOMMENDATIONS NOT APPLICABLE TO MATED PARTS SPECIFIED IN SPEC014)
SCREW SIZE
#6 #8 #10 1/4 5/16 3/8 7/16 1/2 5/8
(INCHES)
TORQUE RANGE
5-8 10-15 18-25 25-40 50-80 90-135 160-210 250-330 450-650
(IN-LBS)
ReDress Inspection
When redressing the tool, Silver Fox recommends replacement of all seals, elements, o-rings, shear screws, etc. Contact Silver Fox
sales for redress kit and/or other replacement part information.
This document is uncontrolled when printed. See electronic copy in database for the current version. PAGE: 1
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
Description
Silver Fox “SMB” Tubing Set Bridge Plug are used for secondary cementing operations. These
drillable Plugs set securely in any hardness casing. A ratchet lock ring stores the setting force in
the Plug. The one piece packing element and metal back up rings combine for a superior seal. The
case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out.
Specification
CASING SETTING RANGE TOOL PRESSURE PART

SIZE WEIGHT MIN ID MAX ID GAGE OD RATING NUMBER
(IN) (LBS/FT) (IN) (IN) (IN) (PSI)
4-1/2 9.5 - 16.6 3.754 4.090 3.580 402-4520x

5-1/2 13.0 - 23.0 4.670 5.044 4.310 402-5520x
10,000
7 17.0 - 35.0 6.004 6.538 5.690 402-7020x
7-5/8 20.0 - 39.0 6.625 7.125 6.310 402-7620x
8-5/8 24.0 - 49.0 7.511 8.097 7.125 402-8520x
8,000
9-5/8 29.3 - 58.4 8.435 9.063 8.125 402-9520x
Features:
• Up to 10,000psi rating
• Sets securely in any hardness casing, including premium grades
• Ratchet lock rings secure dynamic setting force
• Compact, easy running
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
PRODUCT CODE: 402
REVISED Sep/19/18
TECH UNIT REV. A
PRODUCT NO. 402-45200-T
4 1/2" MECHANICAL SET BRIDGE PLUG
GENERAL SPECIFICATIONS
ASSEMBLY CASING SETTING RANGE RATING

NUMBER
10 OD (in) WEIGHT (lb/ft) ID (in) PRESSURE (ksi)
402-45200 4.500 9.5-16.6 3.754-4.090 10

18
MSTs: 405-45005
19
2
BILL OF MATERIALS
3
ITEM DESCRIPTION QTY. PART NUMBER
B 4
1 BRIDGING PLUG 1 402-01150
11 2 BODY 1 402-04370
D
3 UPPER CONE 1 402-04400
5
4 LOCK RING 1 402-04410
C 6 5 OUTER BACKUP RING 2 402-04420

6 INNER BACKUP RING 2 402-04430
14
E 7 ELEMENT RING 1 402-04440
7 8 LOWER CONE 1 402-04450
9 SLIP 1 402-04460
16
10 UPPER SLIP, MECHANICAL 1 402-04100
6 11 SUPPORT RING 1 402-04480
A 12 SHOE 1 402-04580
5
13 KEY 1 402-05760
F 20 14 ELEMENT 1 402-45080
15 O-RING, NITRILE 90D 1 100-32590
13
16 O-RING, NITRILE 90D 1 100-23090
17 SET SCREW 1 150-00609
8 18 SHEAR SCREW, BRASS 1 150-00802
19 SHEAR SCREW, BRASS 3 150-00812
9
17 DIMENSIONS
G 4 1/2"
402-45200
15 9.5-16.6#
A 18.940
12 B 7.997
C 12.350
D 3.580
1
E 1.346
F 3.580
G 3.580
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
PRODUCT CODE: 402
REVISED Sep/19/18
TECH UNIT REV. A

10 NUMBER OD (in) WEIGHT (lb/ft) ID (in) PRESSURE (ksi)
402-55200 5.500 13.0-23.0 4.670-5.044 10

18 MSTs: 405-55005
BILL OF MATERIALS
3 ITEM DESCRIPTION QTY. PART NUMBER
B 4
2 BODY 1 402-05370
11 3 UPPER CONE 1 402-05400
4 LOCK RING 1 402-05410
5
D 5 OUTER BACKUP RING 2 402-05420
C
6 6 INNER BACKUP RING 2 402-05430
14 7 ELEMENT RING 1 402-05440

8 LOWER CONE 1 402-05450
E
7 9 SLIP 1 402-05460
16 10 UPPER SLIP, MECHANICAL 1 402-05100

11 SUPPORT RING 1 402-05480
6 12 SHOE 1 402-05580
A
5 13 KEY 1 402-05760
14 ELEMENT 1 402-55080
F 19 15 O-RING, NITRILE 90D 1 100-32590
13 16 O-RING, NITRILE 90D 1 100-33490

17 SET SCREW 1 150-00609
DIMENSIONS
17 5 1/2"
402-55200
G
13.0-23.0#
A 19.247
15 B 8.256
C 12.497
12 D 4.310
E 1.346
1 F 4.310
G 4.310
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
PRODUCT CODE: 402
REVISED Sep/19/18
TECH UNIT REV. A
7" MECHANICAL SET BRIDGE PLUG

NUMBER OD (in) WEIGHT (lb/ft) ID (in) PRESSURE (ksi)
402-70200 7.000 17.0-35.0 6.004-6.538 10

18 MSTs: 405-70005
BILL OF MATERIALS
B 1 BRIDGING PLUG 1 402-01200

2 BODY 1 402-07370
4
3 UPPER CONE 1 402-07400
D 10 4 LOCK RING 1 402-07410
5 5 OUTER BACKUP RING 2 402-07420

C
6 7 ELEMENT RING 1 402-07440
13 8 LOWER CONE 1 402-07450
E 9 SLIP 1 402-07460
7
15 11 SHOE 1 402-07580
12 KEY 1 402-05760
6 13 ELEMENT 1 402-70080
A 5 14 O-RING, NITRILE 90D 1 100-33090

15 O-RING, NITRILE 90D 1 100-24090
F 17
16 SET SCREW 1 150-00609

9
DIMENSIONS
7"
402-70200
G 16
17.0-35.0#
A 21.266
B 8.487
14 C 13.506
D 5.682
11 E 2.000
F 5.682
G 5.690
1
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
PRODUCT CODE: 402
REVISED Sep-28-20
TECH UNIT REV. A

402-76200 7.625 20.0-39.0 6.625-7.125 10

1 MSTs: 405-76015
18
13 BILL OF MATERIALS
B
3
2 UPPER CONE, 10K 1 400-07640
D 4 3 LOCK RING 1 400-07620

C 5
5 OUTER BACKUP RING 2 400-07660
6 6 INNER BACKUP RING 2 400-07670

7 ELEMENT, 10K 1 400-76180
7
E 8 LOWER CONE, 10K 1 400-07680
19 9 BODY 1 402-07670
10 SLIP 1 400-07630
20 11 BRIDGING PLUG 1 402-01200
12 SHOE 1 402-07780
A
6
5 14 KEY 1 400-07690
15 O-RING, NITRILE 70D 1 100-35470
F
8
16 O-RING, NITRILE 90D 1 100-33090
13 17 SET SCREW 1 150-00609

19 ELEMENT RING 1 400-07720
20 O-RING, NITRILE 90D 1 100-34890
10
14
15 DIMENSIONS
17 7 5/8"
402-76200
G
12 20.0-39.0#
A 22.668
16 B 9.922
C 14.944
D 6.308
E 2.000
F 6.308
G 6.310
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
PRODUCT CODE: 402
REVISED Sep/29/20
TECH UNIT REV. A

1
402-85200 8.625 24.0-49.0 7.511-8.097 8
18 WLAKs: 405-85015
13
B 2 BILL OF MATERIALS

3
D 4 2 UPPER CONE, 8K 1 400-08640
3 LOCK RING 1 400-07620
5
C
6 5 OUTER BACKUP RING 2 400-08660
7
E 7 ELEMENT, 10K 1 400-86180
19 8 LOWER CONE, 8K 1 400-08680
9 BODY 1 402-07670
20 10 SLIP 1 400-08630
6
A 12 SHOE 1 402-08780
14 KEY 1 400-07690
8
F 15 O-RING, NITRILE 70D 1 100-36270
16 O-RING, NITRILE 90D 1 100-33090
13 17 SET SCREW 1 150-00609
10 20 O-RING, NITRILE 90D 1 100-34890
14
15
DIMENSIONS
17
8 5/8"
G 12 402-85200
24.0-49.0#
16 A 22.041
B 9.266
C 14.541
D 7.125
E 2.000
F 7.125
G 7.125
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
PRODUCT CODE: 402
REVISED Sep-28-20
TECH UNIT REV. A
2 ASSEMBLY CASING SETTING RANGE RATING

22
402-95200 9.625 29.3-58.4 8.435-9.063 8
10 MSTs: 405-95015
16
3 BILL OF MATERIALS
B
4
D
1 INNER BODY 1 402-09670
5 2 UPPER SLIP, MECHANICAL 1 402-09700
3 UPPER CONE, 8K 1 400-09640
6
4 LOCK RING 1 400-09620
7 5 SUPPORT RING 1 400-09650
C
6 OUTER BACKUP RING 2 400-09660
8
E 15 8 ELEMENT, 8K 1 400-96180
23 9 LOWER CONE, 8K 1 400-09680

10 OUTER BODY 1 402-09680
11 SLIP 1 400-09630
A 24 12 SHOE 1 400-09710
7
14 SHOE 1 402-09780
6 15 O-RING, NITRILE 90D 1 100-34090
9
F
17 18 KEY 1 400-07690
19 SET SCREW 3 150-00609
18
20 O-RING, NITRILE 70D 1 100-36670
19 21 O-RING, NITRILE 90D 1 100-33090

11
14 24 O-RING, NITRILE 90D 1 100-36290
19
DIMENSIONS
21
9 5/8"
G 20 402-95200
29.3-58.4#
19 A 22.723
B 10.697
13
C 16.570
D 8.125
12 E 2.000
F 8.125
G 8.125
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
Mechanical Setting Tools

Description
When it is advantageous to run a Silver Fox Bridge Plug on tubing or drill pipe, the
Silver Fox Mechanical Setting Tools (MST) are used. The MST is designed to contain
the upper tension slips of the Bridge Plug in a safe retracted position while running
to setting depth.
The Mechanical Running Tool is released from the Bridge Plug by right hand
rotation. The MST contains a built in snap-out feature which provides 10,000#
snap out tension indicator.
The MST is equipped with drag springs to assure positive control during running
and setting procedures at all depths or in highly deviated wells.
The MST may be converted from a Bridge Plug Setting Tool, to a Cement Retainer
Setting Tool, see Cement Retainer Technical Document for more information.
Specification

Drag Spring Body
CASING SETTING RANGE TOOL
PART
SIZE WEIGHT MIN ID MAX ID GAGE OD
NUMBER
(IN) (LBS/FT) (IN) (IN) (IN)
4-1/2 9.5 - 15.1 3.826 4.090 3.63 405-45215
5-1/2 13.0 - 23.0 4.670 5.044 4.31 405-55215
7 17.0 - 35.0 6.004 6.538 5.49 405-70215
7-5/8 20.0 - 39.0 6.625 7.125 6.31 405-76215
8-5/8 24.0 - 49.0 7.511 8.097 7.13 405-85215
9-5/8 29.3 - 58.4 8.435 9.063 8.13 405-95215
Drag Spring
405-95215
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
Assembly 6. Install Top sub onto Mandrel
4-1/2” & 5-1/2” Drag Spring
Use grease or pipe dope on all threaded

connections and white Grease on all
O-rings. See General Guidelines for
torque ratings. 7. Clamp Top Sub in vise, wrench mandrel tight
1. Thread Control Nut Clutch onto Mandrel
8. Insert Upper Drag ring up to Upper Drag Collar
2. Install Set Screws to secure Clutch

x3
9. Insert Upper Drag ring up to Upper Drag Collar
3. Thread Control Nut onto Mandrel
10. Slide both Drag rings to expose Drag Spring gap. Install
Drag Springs into each groove in Collars. Use 2 hose
clamps to aid in assembly.
4. Install Lower Drag Collar to Lower half of Mandrel
11. Align Cap screw holes, then install Socket screws to secure
5. Install Upper Drag Collar to Upper half of Mandrel Upper and Lower retaining ring
x3 x3
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
12. Insert Retaining sleeve in through Control sleeve 17. Insert Stinger sub body through Contol Latch.
13. Align groove inside Control sleeve to Control nut, then slide 18. Install O-Ring into groove of Stinger Sub body
Control sleeve up and thread Drag Spring Assembly onto
Control sleeve
19. Grease threads and O-Ring, compress Dog to allow

engagement of Stinger Sub body thread onto Mandrel.
14. Align Cap screw holes, then install Socket screws to secure Wrench tight where rotation arrow shown
Control sleeve
x4
20. Thread Cap onto Stinger sub

15. Install Setting Sleeve onto Control Sleeve, Thread all the
way up
21. Thread Ported Pup/nipple and Coupling onto Top sub
16. Insert Dog and Dog springs into recessed groove of Control
Latch. Next, insert pins through holes, install set screws to
secure Dog in place.
22. Next install Set Screw to secure Setting

x2
sleeve to Control sleeve
23. Remove all wrench marks with a file before

storage.
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
7”, 7-5/8”, 8-5/8” & 9-5/8” Drag 6. Install Drag Collar Insert into Lower Drag Collar
Spring
Use grease or pipe dope on all threaded

connections and white Grease on all
O-rings. See General Guidelines for
torque ratings. 7. Install Lower Drag collar to just above Snap Ring on Mandrel
1. Thread Control Nut Clutch onto Mandrel
8. Install External Retaining Ring approx. halfway on Mandrel,

DO NOT place into groove, that will be completed in later
step
2. Install Set Screws to secure Clutch
x3
9. Install Upper Drag Collar on Top end of Mandrel

3. Thread Control Nut onto Mandrel
10. Slide Upper Drag ring onto Upper Drag Collar

4. Install Retainer Washer to Lower half of Mandrel
11. Install Top Sub onto Mandrel

5. Install Snap Ring into Groove on Mandrel
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
12. Clamp Top Sub in vise, wrench mandrel tight 16. Once Upper Drag spring subassembly complete, Drive whole
subassembly down on top of Snap Ring and shouldering out
on Retainer Washer. This can be accomplished by having
Top sub tight in vise, next slide Drag spring up to top sub,
then shift quickly with down force down onto Snap ring.
13. Slide Lower Drag ring onto Lower Drag Collar
17. Place External Retaining ring into proper position

14. Slide both Drag rings to expose Drag Spring gap. Install
Drag Springs into each groove in Collars. Use 2 hose
clamps to aid in assembly.
18. Insert Retaining sleeve in through Control sleeve
15. Install Drag Rings

7” & 7-5/8” ONLY
Align Cap screw holes for Top ring, then install Socket screws to
secure. Slide Lower ring up and into position 19. Align groove inside Control sleeve to Control nut, then slide
Control sleeve up and thread Drag Spring Assembly onto
x3 Control sleeve
8-5/8” & 9-5/8” ONLY

Align Cap screw holes, then install Socket screws to secure
Upper and Lower retaining ring 20. Align Cap screw holes, then install Socket screws to secure
Control sleeve
x3 x3 x4
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
21. Install Setting Sleeve onto Control Sleeve, Thread all the 24. Install O-Ring into groove of Stinger Sub body
way up
22. Insert Dog and Dog springs into recessed groove of Control
Latch. Next, insert pins through holes, install set screws to 25. Grease threads and O-Ring, compress Dog to allow
secure Dog in place. engagement of Stinger Sub body thread onto Mandrel.
Wrench tight where rotation arrow shown
For 7-5/8”, 8-5/8” & 9-5/8” ONLY 26. Insert Cap onto Stinger sub
27. Thread Ported Pup/nipple and Coupling onto Top sub
Install appropriate sized Slip adaptor onto Control Latch
x4
28. Install Set Screw to secure Setting

sleeve to Control sleeve
23. Insert Stinger sub body through Contol Latch. x2
29. Remove all wrench marks with a
file before storage.
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
Mounting Mechanical Bridge 4. Slide upper slips over stinger sub body. Loosen clamp on
slips only enough to slide slips over upset on snap latch
Plug then retighten.
The following instructions below

demonstrate a 9-5/8” MST and Bridge
plug
The mounting instructions are the same

for both the Drag Block and Drag 5. Lubricate upper non-wickered portion of slips where setting
spring style MST’s. sleeve contacts slips with grease.
1. Place top collar of mechanical setting tool in vise. Move

drag block assembly on 4-1/2 & 5-1/2” size setting tool
upward until it stops. On 7” and larger setting tools move
drag block assembly downward until it stops.
6. Rotate setting sleeve downward overs slips until setting

sleeve contacts the clamp on slips.
2. Rotate drag assembly to the right until it engages the clutch

and stops
7. Loosen and move the clamp to wickered portion of slips.

Continue rotating the setting sleeve downward until sleeve
bottoms out against top wicker of slips.
3. Remove set screws from setting sleeve, and rotate/slide up

to DB assembly 8. Back off three (3) turns. Check to ensure that drag block
assembly is still engaged with the clutch. Re-adjust setting
sleeve if necessary.
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
1. Lubricate latch with grease. Place a liberal amount of grease

in Silver Fox Plug bore.
2. Slide the Plug over the stinger cap. (NOTE: Make sure that
the plug remains level during this operation).
3. Rotate Plug to make up left hand thread of snap latch into

left hand thread at top of Plug.
4. Back off to align with nearest hole in

Control Latch. Install Shear screw in
hole in snap latch.
5. Rotate setting sleeve downward until

it bottoms out on wickered portion of
Slip.
6. Back up setting sleeve 1/2 turn and
secure with two (2) set screws.
7. Remove clamp on upper slips before

running in well.
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
Mechanical Running Instructions

1. Make up the Top Sub of the Running Tool to the Lower Pin end of the work string. Use a good quality A.P.I. approved thread
lubricant and torque all work string connections to manufacturers torque specifications. During running, extreme care should be
taken to avoid any right hand rotation being transmitted to the setting tool. As a precaution, one left hand turn should be placed
in the work string every 10 to 15 stands.
2. When the desired setting depth has been reached, the tools should be picked up two (2) feet above the desired setting point.
This movement is necessary to provide the required tool stroke to release the upper slips and allow the control nut to move
freely.
3. Rotate the work string to the right sufficiently to transmit 10 turns to the tool. This right hand rotation will thread the control
nut off of its mating threads on the tool mandrel and release the control sleeve and setting sleeve from the controlled position.
4. Now lower the tools to the desired setting point and the drag assembly will support the control sleeve and setting sleeve. The
downward motion of the tool mandrel will move the slips from under the setting sleeve and the slips are forced outward toward
the casing wall by the leaf springs attached to the inside of each slip segment. When the slips are released, there is sufficient
clearance for the locking dog to move outward and release the control latch from the stinger sub body.
5. Pull recommended tension above pipe weight at the tool to set the slips and affect a packoff. To assure a packoff you must pull
at least the minimum tension shown in the below chart, then set down an equivalent amount of weight on the tool and again
apply the recommended tension. The tool should now be set and pressure testing may be performed.
TENSION REQUIRED
TOOL SIZE
MIN (LBS) MAX (LBS)
4-1/2 to 7” 20,000 30,000
7-5/8 to 9-5/8” 30,000 45,000
6. The Setting Tool may be released from the Plug by pulling 500 pounds of tension at the tool and then rotating the work string
10 turns to the right at the tool. The above movement will shear the shear screw and unscrew the setting tool’s snap latch from
the Bridge Plug.
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
PRODUCT CODE: 405
REVISED Oct-19-20
TECH UNIT REV. A
PRODUCT NO. 405-5x215-T
BOW SPRING MECHANICAL SETTING TOOL FOR BRIDGE PLUGS
4
ASSEMBLY CASING SETTING RANGE
USED ON
NUMBER OD (in) WEIGHT (lb/ft) ID (in)
405-45215 4.500 9.5-15.1 3.826-4.090 402-45200
405-50215 5.000 11.5-20.8 4.156-4.560 402-50200
5 405-55215 5.500 13.0-23.0 4.670-5.044 402-55200

B
405-45215 405-50215 405-55215

BILL OF MATERIALS
C (9.5-15.1#) (11.5-20.8#) (13.0-23.0#)
G 6
1 DRAG SPRING 6 405-04330 405-05330
2 SETTING SLEEVE 1 405-04200 405-04700 405-05200
15 3 SET SCREW 2 150-00626 150-00620
COMMON BILL OF MATERIALS
H ITEM DESCRIPTION QTY. PART NUMBER

8 4 COUPLING 1 201-23101
5 PUP JOINT 1 211-23510
7
6 TOP SUB 1 405-00230
7 UPPER DRAG RING 1 405-04320
20 8 UPPER DRAG COLLAR 1 405-04310
D
9 LOWER DRAG COLLAR 1 405-04350
E 1
10 LOWER DRAG RING 1 405-04340
F
11 CONTROL NUT 1 405-04040
I
12 CONTROL SLEEVE 1 405-04030
13 RETAINING SLEEVE 1 405-04070
A 14 CONTROL NUT CLUTCH 1 405-04050
20 15 MANDREL 1 405-04360
16 CONTROL LATCH 1 405-04080
10
17 STINGER SUB BODY 1 405-04090
18 KEY 1 405-04100
9
19 STINGER 1 405-04610
21 20 DRAG COLLAR CAP SCREW 6 405-00700

21 SOCKET HEAD CAP SCREW 4 150-00702
J 12
22 SET SCREW 3 150-00627
23 SET SCREW 2 150-00625
A
18 24 PIN 2 150-01003
25 25 DOG 1 405-04150
K 26 DOG SPRING 2 150-05790
2 27 O-RING, NITRILE 90D 1 100-21990
16 **ITEMS 23 , 24 , 26 NOT SHOWN

DIMENSIONS
17
4 1/2" 5" 5 1/2"
3 405-45215 405-50215 405-55215
9.5-15.1# 11.5-20.8# 13.0-23.0#
11 A 65.825
B 16.964
14
C 21.965
19
D 52.575
E 54.834
22 F 57.828
G 3.063
27 H 1.000
I 5.223 6.124
13 J 3.580 3.940 4.310
DETAIL A K 3.265 3.975
*405-55215 SHOWN, WITH 402-55200 SCALE 1 : 2
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
PRODUCT CODE: 405
REVISED Oct/13/20
TECH UNIT REV. A
1 ASSEMBLY CASING SETTING RANGE

USED ON
405-70215 7.000 17.0-35.0 6.004-6.538 402-70200
2 BILL OF MATERIALS
B ITEM DESCRIPTION QTY. PART NUMBER
1 1 COUPLING 2 201-27101
C 2 PUP JOINT 1 211-27510
3 UPPER DRAG RING 1 405-06320
G 4 UPPER DRAG COLLAR 1 405-06310
15 5 DRAG SPRING, #30 6 405-07330
7 SNAP RING 1 405-06380
H 4 8 DRAG COLLAR INSERT 1 405-06370
9 RETAINING WASHER 1 405-06390
3
11 CONTROL NUT 1 405-06040
21 12 CONTROL SLEEVE 1 405-06030
13 RETAINING SLEEVE 1 405-06070
5
D 14 CONTROL NUT CLUTCH 1 405-06050
E 15 MANDREL 1 405-06360
I
F 30 16 SETTING SLEEVE 1 405-07200
17 CONTROL LATCH 1 405-06080
10
A 7 19 KEY 1 405-04100
20 STINGER 1 405-07110
6
21 DRAG COLLAR CAP SCREW 3 405-00700
8 22 SOCKET HEAD CAP SCREW 4 150-00702
23 SET SCREW 3 150-00627
22
24 SET SCREW 2 150-00626
9 25 SET SCREW 2 150-00625
J 26 PIN 2 150-01003
12
27 DOG 1 405-06150
19 A
28 DOG SPRING 2 150-06790
29 O-RING, NITRILE 90D 1 100-22590
16 30 EXTERNAL RETAINING RING 1 150-02003
K
17 **ITEMS 25 , 26 , 28 NOT SHOWN
18
DIMENSIONS
11
7"
24 405-70215
17.0-35.0#
14 A 73.236
20 B 16.839
C 22.630
23 D 57.758
E 60.456
29 F 63.318
G 3.668
13 H 1.750
I 8.605
27
J 5.370
*405-70215 SHOWN, WITH 402-70200 K 5.020
DETAIL A
SCALE 1 : 2
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
PRODUCT CODE: 405
REVISED Oct/13/20
TECH UNIT REV. A

NUMBER USED ON
1 OD (in) WEIGHT (lb/ft) ID (in)
405-76215 7.625 20.0-39.0 6.625-7.125 402-76200
2 BILL OF MATERIALS

B 1 COUPLING 2 201-27101
2 PUP JOINT 1 211-27510
1
C 3 UPPER DRAG RING 1 405-06320
4 UPPER DRAG COLLAR 1 405-06310
G
5 DRAG SPRING, #30 6 405-07330
15 6 LOWER DRAG COLLAR 1 405-06350
7 SNAP RING 1 405-06380
8 DRAG COLLAR INSERT 1 405-06370
H 4 9 RETAINING WASHER 1 405-06390
3
11 CONTROL NUT 1 405-06040
12 CONTROL SLEEVE 1 405-06030
22 13 RETAINING SLEEVE 1 405-06070
14 CONTROL NUT CLUTCH 1 405-06050
5
D 15 MANDREL 1 405-06360
E
I 16 SETTING SLEEVE 1 405-07800
F 32 17 CONTROL LATCH 1 405-08680
18 SLIP ADAPTOR 1 405-07700
10
A 7 20 KEY 1 405-04100
21 STINGER 1 405-07110
6
24 SET SCREW 3 150-00627
23
25 SET SCREW 2 150-00620
9 26 SET SCREW 2 150-00625
J 27 PIN 2 150-01003
12
28 DOG 1 405-06150
20 A
29 DOG SPRING 2 150-06790
16
K 30 SET SCREW 4 150-00632
30 31 O-RING, NITRILE 90D 1 100-22590
32 EXTERNAL RETAINING RING 1 150-02003
18
**ITEMS 26 , 27 , 29 NOT SHOWN
17
DIMENSIONS
19
11 7 5/8"
405-76215
25
20.0-39.0#
21 14 A 73.226
B 16.839
C 22.630
24 D 57.758
E 60.479
31 F 63.318
G 3.668
13 H 1.750
I 8.605
*405-76215 SHOWN, WITH 402-76200 28 J 6.310
K 5.530
DETAIL A
SCALE 1 : 2
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
PRODUCT CODE: 405
REVISED Oct/13/20
TECH UNIT REV. A
PRODUCT NO. 405-x5215-T

USED ON
405-85215 8.625 24.0-49.0 7.511-8.097 402-85200

4 405-95215 9.625 29.3-58.4 8.435-9.063 402-95200
405-85215 405-95215
BILL OF MATERIALS
(24.0-49.0#) (29.3-58.4#)
5
B 1 DRAG SPRING 9 405-08930 405-09930
4 2 SETTING SLEEVE 1 405-08800 405-09800
C 3 SLIP ADAPTOR 1 405-08700 405-09700
G COMMON BILL OF MATERIALS

4 COUPLING 2 201-27101
5 PUP JOINT 1 211-27510
H 7 6 DRAG RING 2 405-08920
7 UPPER DRAG COLLAR 1 405-08910
6
9 SNAP RING 1 405-06380
21 10 DRAG COLLAR INSERT 1 405-06370
11 RETAINING WASHER 1 405-06390
1
D
12 CONTROL NUT 1 405-06040
E I 13 CONTROL SLEEVE 1 405-06030
F 31 14 RETAINING SLEEVE 1 405-06070
15 CONTROL NUT CLUTCH 1 405-06050
8
16 MANDREL 1 405-06360
A 9 17 CONTROL LATCH 1 405-08680
6
19 KEY 1 405-04100
10 20 STINGER 1 405-07110
22
22 SOCKET HEAD CAP SCREW 4 150-00702
11 23 SET SCREW 3 150-00627
24 SET SCREW 2 150-00620
J
13
25 SET SCREW 2 150-00625
A 2 26 PIN 2 150-01003
K
27 DOG 1 405-06150
29
28 DOG SPRING 2 150-06790
19
30 O-RING, NITRILE 90D 1 100-22590
17
31 EXTERNAL RETAINING RING 1 150-02003
18
**ITEMS 25 , 26 , 28 NOT SHOWN
DIMENSIONS
12
8 5/8" 9 5/8"
24 405-85215 405-95215
20 24.0-49.0# 29.3-58.4#
15
A 73.226
B 16.839
23
C 23.170 23.295
30 D 57.758
E 60.450 61.200
14 F 63.318
G 3.668
*405-95215 SHOWN, WITH 402-95200 27 H 1.750
I 9.751 10.249
J 7.130 8.130
DETAIL A
K 6.700 7.700
SCALE 1 : 2
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
Removal Techniques
Drilling is the preferred method of removing drillable bridge plugs since drilling can usually be accomplished in less than 10 percent
of the time it takes to millout the same bridge plug. This high relative removal time for the milling technique is explained by the
examination and the mechanics of the two methods. Drilling causes a chiseling effect, and milling has a shaving effect of the target.
Further, milling yields more debris of the type that causes penetration stoppage. Drilling with a short tooth medium hard formation
rock bit is usually the best combination for Bridge Plug or plug removal.
Suggested Drilling Techniques

Though the best drilling technique will vary with equipment availability a typical combination would consist of a short or medium
tooth hard formation bit (IADC CODES 2-1, 2·2, 2-3, 2-4, and 3-1), 75 to 120 RPM rotary speed and such drill collars as necessary
for weight and bit stabilization.
To drill the bridge plug:
• apply 5,000-7,000 lbs until the top end of the Plug mandrel is drilled (4-5 in.)
• increase weight to 2,000-3,000 lbs per inch of bit diameter to drill out remainder . (For example, use 9,500-14,250 lbs for
a 4 3/4” bit.)
When normal circulation is to be used, place a junk basket above the bit. If reverse circulation is planned, casing scraper or other
equipment in the tubing string above the bit should have an inside fluid passage as large as the passage through the bit so cuttings
will not bridge.
Variations in bit speed and bit weight should be made to help break up metal parts to re-establish bit penetration should it cease
while drilling.
Penetration may be stopped by “bit tracking” which is usually caused by insufficient weight on the bit. Bit tracking occurs when bit
teeth travel in the same indentation of “track” made previously by another tooth. Successive tooth impact to the same location will
sometimes deepen the track until indentations equal bit tooth length, reducing the impact of the teeth to the point that they will not
penetrate. Drilling penetration may be re-established by raising the bit off of the Plug, and then lowering the bit back onto the Plug
while maintaining rotation.
NOTE: Drilling times are directly related to tool size, bit stability, drilling weight, pump rate. bit
RPM, type of bit, drilling fluid, etc.
the combination of high mud viscosity and high pump rates may lift the bit off of the Plug during
drilling.
The same consideration should be used when drilling bridge plugs as would he given when drilling
medium hard rock formation.
FORM: TECH.402-02
VERSION: 2010
TOTAL PAGES: 23
Suggested Milling Techniques

If equipment availability or other considerations dictate that the milling technique must be used, the recommended combination is a
concave face junk type mill tool, rotated at 60-150 RPM with 5,000-8,000lbs on the mill.
Use mud viscosity of 60 cps and a minimum annular velocity of 120 ft/min to assure cutting removal.
When ready to begin milling operations, start the mill above the target and lower it slowly onto the target. Do not apply weight in
excess of recommended amount; great weights can tear out chunks of the packer and make a bailer trip necessary to remove the
chunks to allow further penetration. Maintain a constant milling rate by adding weight as tool is milled away.

Mechanical Bridge Plug: Technical Documentation

Загружено:

Сведения о документе

Оригинальное название

Авторское право

Доступные форматы

Поделиться этим документом

Поделиться или встроить документ

Параметры публикации

Этот документ был вам полезен?

Это неприемлемый материал?

Авторское право:

Доступные форматы

Mechanical Bridge Plug: Technical Documentation

Загружено:

Авторское право:

Доступные форматы

FORM: TECH.

TECHNICAL DOCUMENTATION AUTHOR: Kelly Kykkanen

GENERAL THREAD CONNECTION TORQUE RECOMMENDATIONS

STUB ACME/ ACME INTERNAL TAPERED TUBING THREADS PREMIUM THREADS

GENERAL SCREW TORQUE RECOMMENDATIONS

Mechanical Bridge Plug

CASING SETTING RANGE TOOL PRESSURE PART

4-1/2 9.5 - 16.6 3.754 4.090 3.580 402-4520x

ASSEMBLY CASING SETTING RANGE RATING

402-45200 4.500 9.5-16.6 3.754-4.090 10

C 6 5 OUTER BACKUP RING 2 402-04420

ASSEMBLY CASING SETTING RANGE RATING

402-55200 5.500 13.0-23.0 4.670-5.044 10

14 7 ELEMENT RING 1 402-05440

16 10 UPPER SLIP, MECHANICAL 1 402-05100

13 16 O-RING, NITRILE 90D 1 100-33490

ASSEMBLY CASING SETTING RANGE RATING

402-70200 7.000 17.0-35.0 6.004-6.538 10

3 ITEM DESCRIPTION QTY. PART NUMBER

B 1 BRIDGING PLUG 1 402-01200

D 10 4 LOCK RING 1 402-07410

5 5 OUTER BACKUP RING 2 402-07420

13 8 LOWER CONE 1 402-07450

A 5 14 O-RING, NITRILE 90D 1 100-33090

8 17 SHEAR SCREW, BRASS 5 150-00817

ASSEMBLY CASING SETTING RANGE RATING

402-76200 7.625 20.0-39.0 6.625-7.125 10

D 4 3 LOCK RING 1 400-07620

6 6 INNER BACKUP RING 2 400-07670

13 17 SET SCREW 1 150-00609

ASSEMBLY CASING SETTING RANGE RATING

ITEM DESCRIPTION QTY. PART NUMBER

2 ASSEMBLY CASING SETTING RANGE RATING

23 9 LOWER CONE, 8K 1 400-09680

19 21 O-RING, NITRILE 90D 1 100-33090

14 24 O-RING, NITRILE 90D 1 100-36290

Mechanical Setting Tools

Assembly 6. Install Top sub onto Mandrel

4-1/2” & 5-1/2” Drag Spring

Use grease or pipe dope on all threaded

1. Thread Control Nut Clutch onto Mandrel

8. Insert Upper Drag ring up to Upper Drag Collar

2. Install Set Screws to secure Clutch

9. Insert Upper Drag ring up to Upper Drag Collar

3. Thread Control Nut onto Mandrel

4. Install Lower Drag Collar to Lower half of Mandrel

19. Grease threads and O-Ring, compress Dog to allow

20. Thread Cap onto Stinger sub

21. Thread Ported Pup/nipple and Coupling onto Top sub

22. Next install Set Screw to secure Setting

23. Remove all wrench marks with a file before

Use grease or pipe dope on all threaded

1. Thread Control Nut Clutch onto Mandrel

8. Install External Retaining Ring approx. halfway on Mandrel,

9. Install Upper Drag Collar on Top end of Mandrel

10. Slide Upper Drag ring onto Upper Drag Collar

11. Install Top Sub onto Mandrel

13. Slide Lower Drag ring onto Lower Drag Collar

17. Place External Retaining ring into proper position

18. Insert Retaining sleeve in through Control sleeve

15. Install Drag Rings

8-5/8” & 9-5/8” ONLY

27. Thread Ported Pup/nipple and Coupling onto Top sub
